Button

Button nodes can be added after bot nodes. Buttons provide users with clickable options to control the flow direction to specified processes. Multiple buttons can be added after a bot node, and a group of buttons can only be clicked once.

Button nodes provide users with predefined options, allowing them to respond quickly by clicking buttons without manually entering text. This interaction method can improve user experience and ensure input accuracy.

Button Features

FeatureDescription
Flow ControlButton clicks can guide the conversation flow to specified nodes or branches
One-time UseButtons become disabled after being clicked once.
Multi-button SupportMultiple buttons can be added after one bot node to provide users with multiple choices
Predefined OptionsButton text is predefined to ensure consistency of user input
Quick ResponseUsers don’t need to manually input, they can make quick choices by clicking

Usage Scenarios

Service Type Selection

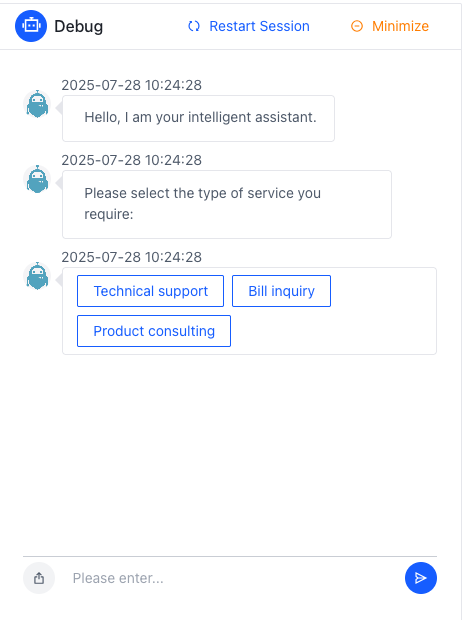

Suppose we have a customer service bot that needs users to select a service type: service_selection.png

The bot asks: “Please select the type of service you need:”

Then provides three buttons for users to choose from:

  • Technical Support
  • Billing Inquiry
  • Product Consultation

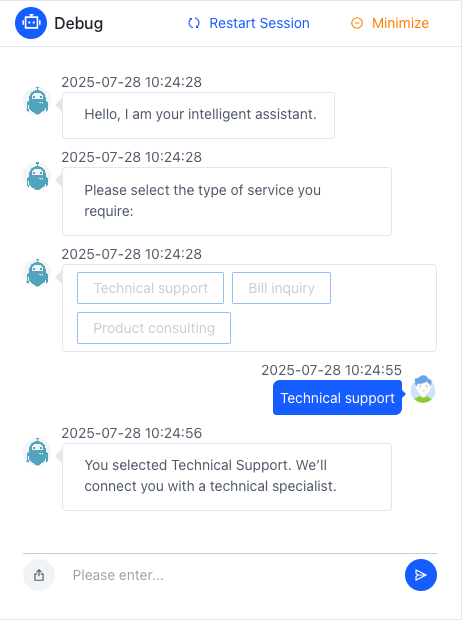

After the user clicks one of the buttons, the conversation flow will jump to the corresponding processing branch based on the selection. button_options.png

Configuring Button Nodes

Adding Buttons

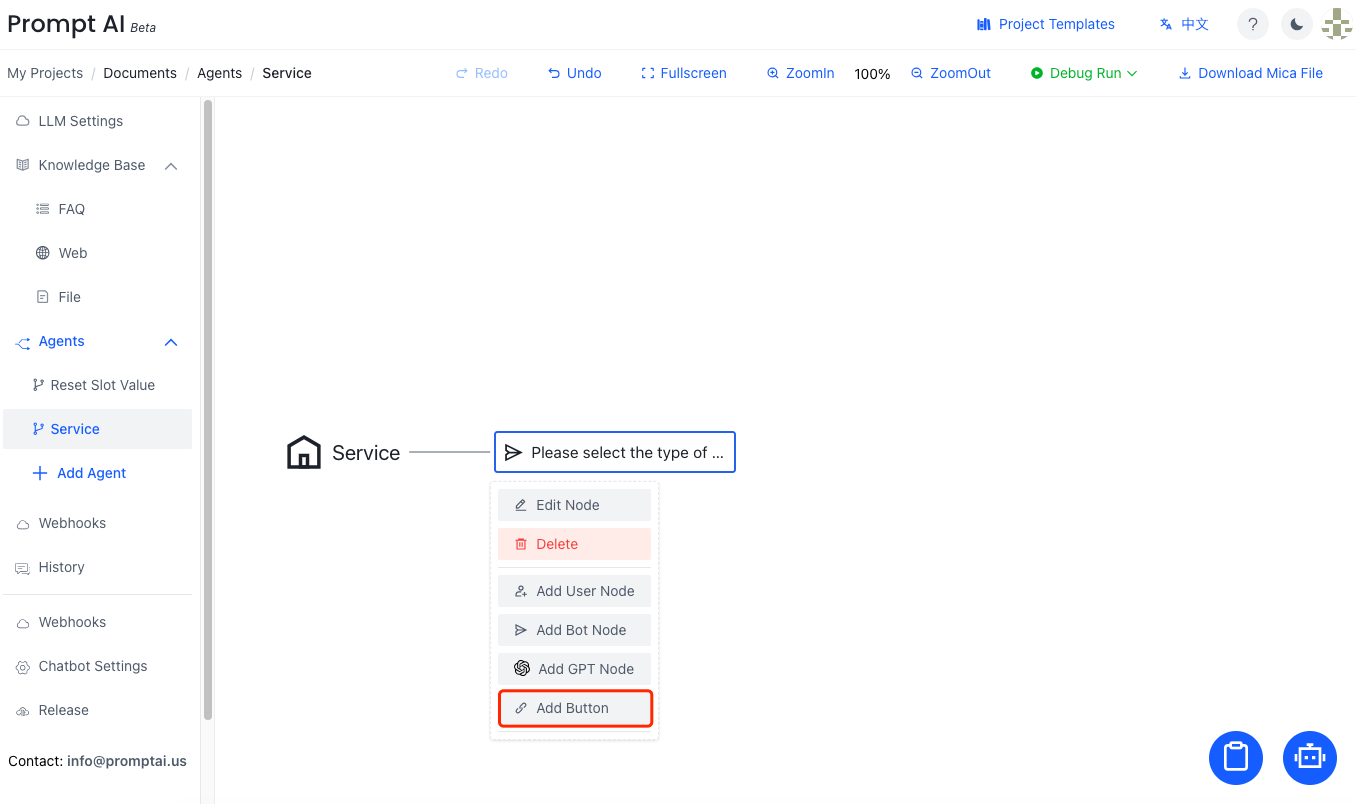

Click the bot node to add a Button

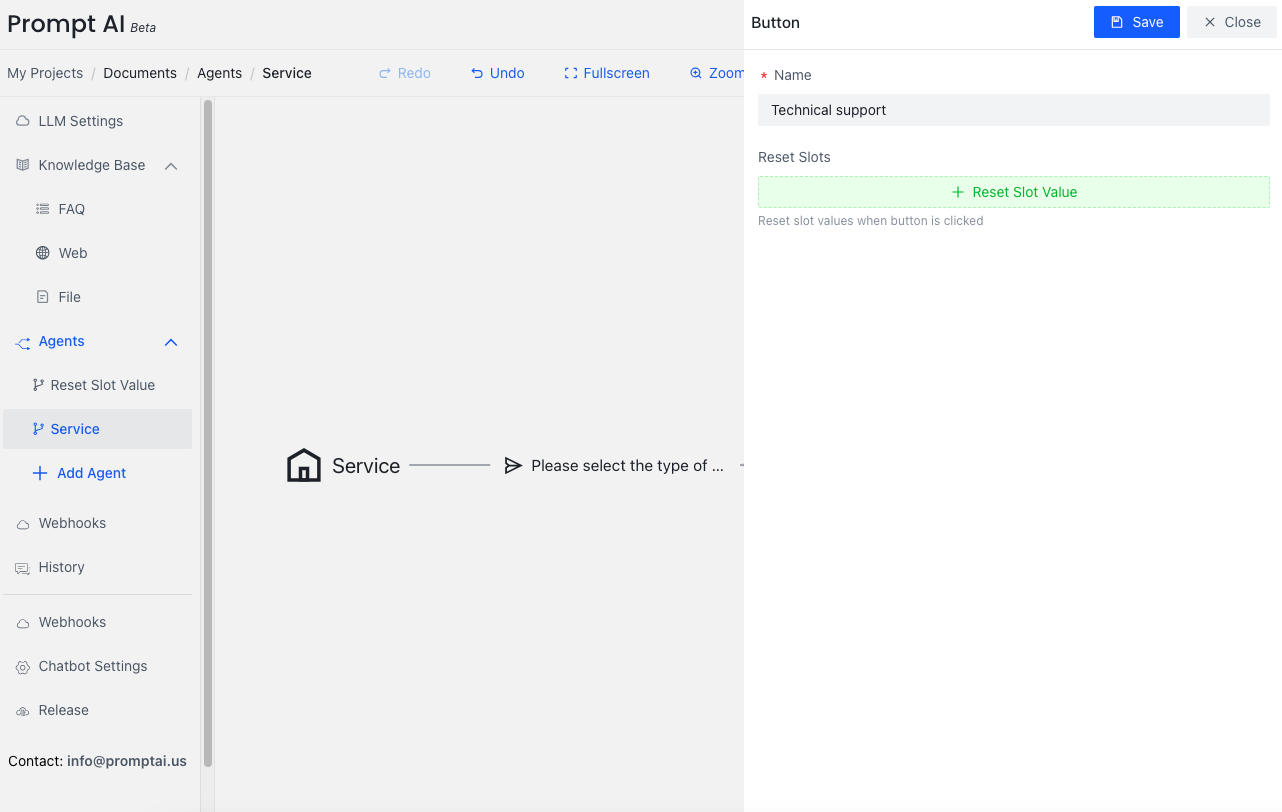

Set button text set_button_name.png

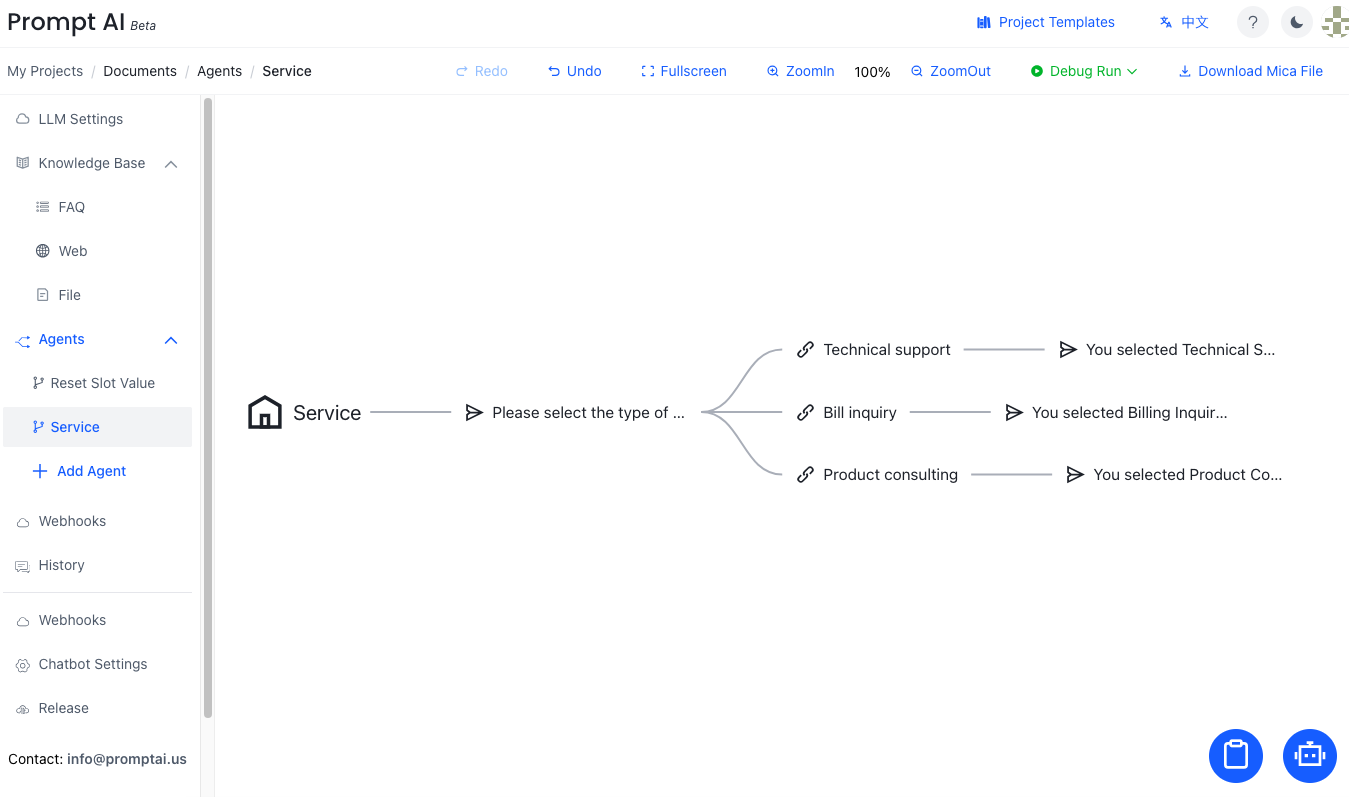

Multi-button Configuration

When you need to add multiple buttons:

  1. Repeatedly add button nodes
  2. Set different text and targets for each button
  3. Ensure button text is concise and clear


Best Practices

Button Text Design

  • Use concise and clear text
  • Avoid overly long button labels
  • Ensure clear distinctions between options

Button Quantity Control

  • Recommend no more than 5 buttons in one group
  • Too many options will affect user experience
  • Use hierarchical organization for complex options

Flow Design

  • Ensure each button has a clear target node
  • Avoid infinite loops or invalid jumps
  • Provide users with mechanisms to return or reselect

Tips

Button nodes are important tools for building interactive conversation flows. Proper use of buttons can significantly improve user experience and simplify complex conversation logic.
